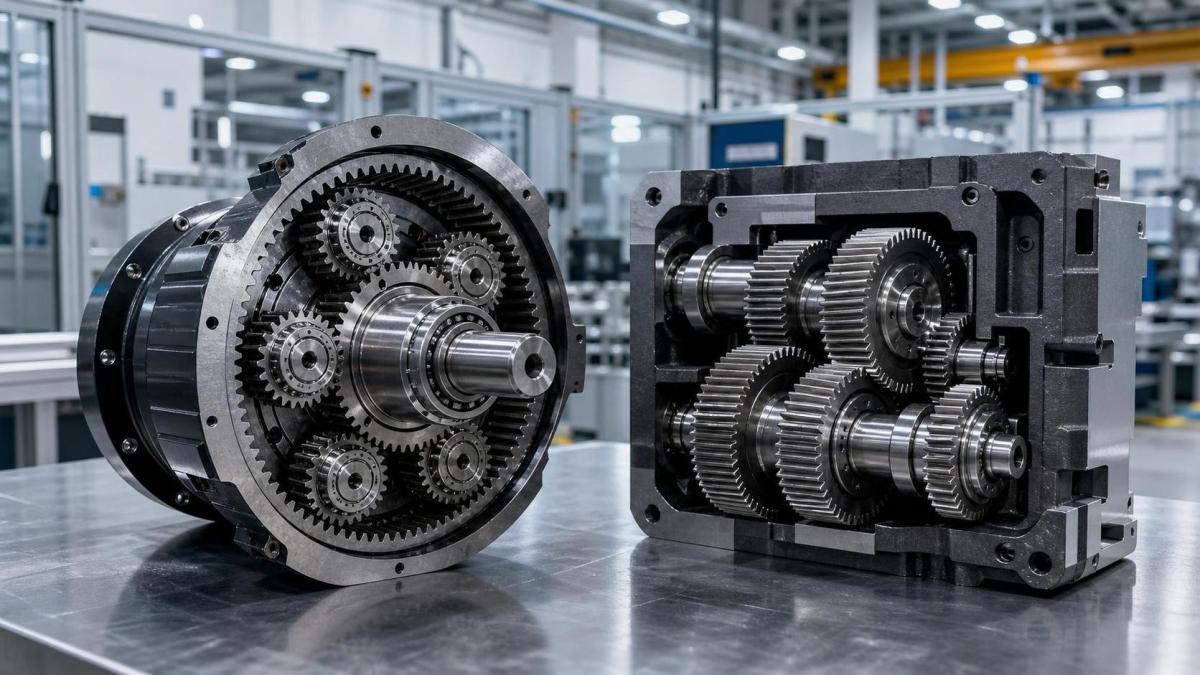

Industrial Gearing Planetary vs Spur: Which Performs Better?

Industrial Gearing Planetary vs Spur: Which Performs Better?

When torque, efficiency, and footprint matter, industrial gearing planetary systems often lead the discussion. They deliver high power density in compact spaces and stay reliable under demanding duty cycles.

Spur gears, however, remain widely used for a reason. They are simple, familiar, and cost-effective. In many machines, that simplicity is still the smarter engineering choice.

The real question is not which design is universally better. It is which one performs better for load profile, operating speed, available space, maintenance access, and life-cycle expectations.

From a practical standpoint, this comparison helps clarify where industrial gearing planetary units outperform spur gear drives, and where spur systems still hold an advantage.

How the Two Gear Systems Work

A spur gear system uses straight teeth on parallel shafts. Power transfers from one gear to another through direct tooth engagement. The geometry is easy to understand and easy to manufacture.

An industrial gearing planetary setup works differently. It includes a central sun gear, surrounding planet gears, and an outer ring gear. Multiple contact points share the transmitted load.

That load-sharing effect is a major reason planetary reducers are common in robotics, conveyors, packaging lines, servo systems, and heavy positioning equipment.

Spur gears usually appear where layout is open, speeds are moderate, and the application values straightforward serviceability over compact torque density.

Torque Capacity and Load Distribution

If torque is the main performance metric, industrial gearing planetary designs usually have the stronger case. Several planet gears carry the load at the same time, reducing stress concentration.

This means a compact planetary gearbox can often transmit more torque than a spur gear system of similar size. That matters when installation space is tight.

In spur gear arrangements, the load is typically carried through one tooth mesh at a time. That can work very well, but capacity rises by increasing gear size and shaft spacing.

For lifting, indexing, high-inertia starts, and repeated shock loading, industrial gearing planetary units generally offer a more stable torque path.

Where Torque Density Changes the Decision

• Servo-driven axes with limited mounting space
• Mobile equipment needing compact power transmission
• Rotary tables and precision positioners
• Heavy conveyors with frequent load variation

Efficiency, Speed, and Energy Use

Efficiency depends on design quality, lubrication, alignment, and operating range. In single-stage layouts, spur gears can be very efficient because the power path is simple.

That simplicity reduces internal losses. In lightly loaded or continuously running systems, a well-designed spur gearbox may show excellent energy performance.

Industrial gearing planetary systems also perform efficiently, especially when high reduction ratios are needed in a small envelope. They often avoid the need for larger multi-stage external layouts.

More importantly, system-level efficiency is not only about gear mesh loss. Compact geometry can reduce supporting structure, shaft deflection, and coupling complexity.

In actual plant operation, that can narrow the practical efficiency gap. It may even favor industrial gearing planetary solutions once the full drive package is considered.

Footprint, Integration, and Machine Layout

This is where industrial gearing planetary designs often separate themselves clearly. Their coaxial structure keeps the input and output aligned, which simplifies many machine layouts.

That compact form supports cleaner integration with motors, servo packages, and automation modules. In high-density equipment, every saved millimeter has value.

Spur gear systems usually require more axial or lateral space, depending on shaft arrangement. That is not always a problem in larger machines or accessible drive bays.

Still, when a design team must fit more capability into less space, industrial gearing planetary packages usually make the layout easier to manage.

Typical Integration Advantages of Planetary Drives

• Shorter overall drive assembly length
• Better motor-to-gearbox alignment
• Higher reduction in limited space
• Cleaner fit inside enclosed machine frames

Precision, Backlash, and Motion Control

For positioning accuracy, backlash matters. Many industrial gearing planetary units are engineered for low-backlash performance, which supports repeatable motion in automated systems.

That is one reason they are common in servo applications, pick-and-place equipment, and indexing platforms. Precision improves when torsional stiffness is also well controlled.

Spur gears can also deliver accurate motion, especially in carefully built systems. But maintaining low backlash may require tighter tolerances or more space for supporting components.

Where repeated stopping, reversing, and exact positioning are central requirements, industrial gearing planetary options often perform more consistently.

Noise, Vibration, and Operating Feel

Noise behavior depends on tooth geometry, speed, housing stiffness, and mounting accuracy. Spur gears can become noticeably louder at high speed because tooth engagement is more direct.

Industrial gearing planetary systems often spread forces more evenly. That can help with smoother operation, though quality differences between manufacturers still matter a lot.

In packaging, medical manufacturing, and electronics assembly, lower vibration can improve process stability. This is where a refined planetary reducer often earns its higher price.

Maintenance, Durability, and Failure Risk

Spur gear systems are easier to inspect visually and easier to understand during field maintenance. Fewer internal elements can make troubleshooting more straightforward.

That said, industrial gearing planetary assemblies often win on durability when load peaks are frequent. Shared loading reduces local stress and can extend service life.

Lubrication quality is critical for both systems. Poor lubrication, contamination, and misalignment will shorten life regardless of gear type.

A practical maintenance decision should consider access time, spare parts, expected duty cycle, and the cost of unplanned downtime.

Warning Signs Worth Watching

1. Rising operating temperature under normal load
2. New vibration during acceleration or reversal
3. Lubricant discoloration or metal particles
4. Increasing backlash or unstable positioning

Cost: Purchase Price vs Life-Cycle Value

Initial purchase price often favors spur gears. They are simpler to produce and commonly available across many industrial categories.

Industrial gearing planetary products usually cost more upfront. However, that higher price can be justified by compact packaging, torque density, lower backlash, and longer operating life.

The better financial choice depends on the total system. A cheaper gearbox is not the lower-cost solution if it forces larger structures or more frequent maintenance stops.

Quick Selection Guide for Real Industrial Use

Final Take: Which Performs Better?

In most space-constrained, high-torque, precision-focused applications, industrial gearing planetary systems perform better overall. They combine compactness, load sharing, and motion quality in a very efficient package.

Spur gears still perform better where simplicity, accessibility, and lower upfront cost matter most. They remain an excellent choice for many standard transmission tasks.

A sound decision starts with the application, not the label. Check torque peaks, reduction ratio, installation space, backlash targets, maintenance conditions, and expected operating hours.

For teams benchmarking drive systems across advanced manufacturing environments, that disciplined comparison leads to better uptime, better energy use, and fewer redesigns later.
