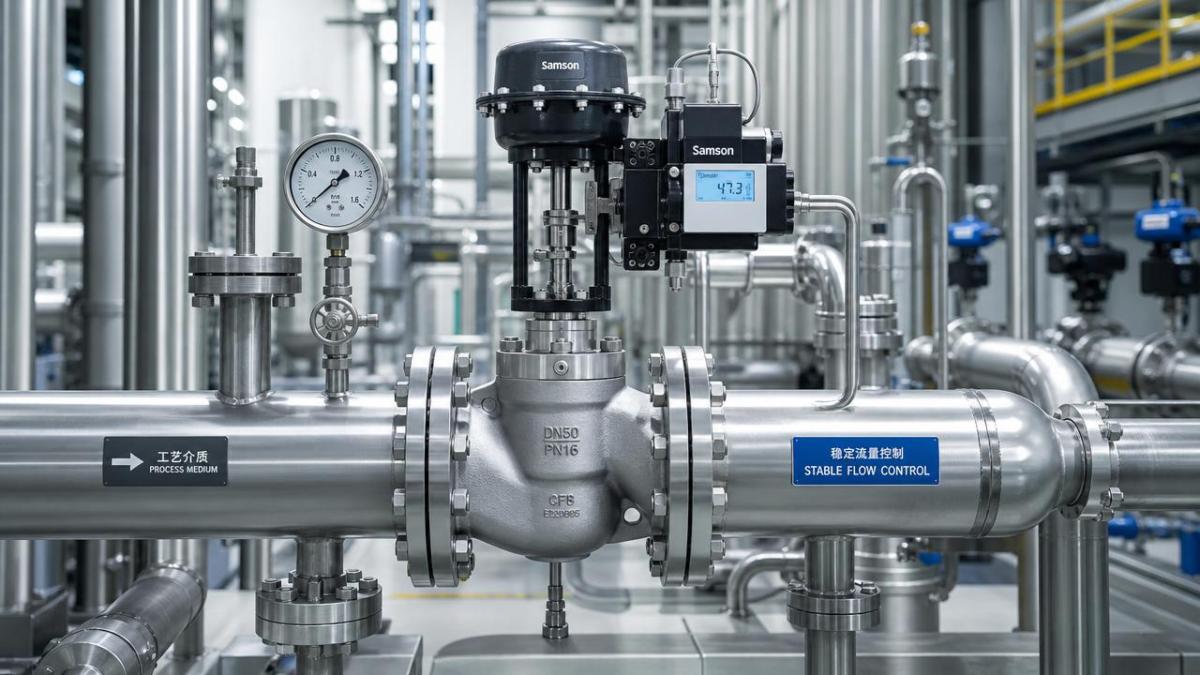

Pressure Drop Across Control Valves: Sizing Mistakes to Avoid

For technical evaluators, understanding pressure drop across control valves is essential to avoiding costly sizing errors, unstable flow control, and hidden efficiency losses.

This article explains where sizing decisions most often go wrong, what data matters most, and how better valve evaluation improves reliability, efficiency, and confidence.

What Technical Evaluators Are Really Trying to Determine

When people search for pressure drop across control valves, they are rarely looking for theory alone. They want to know whether a valve will actually perform safely in service.

For technical evaluators, the main concern is practical: can the selected valve pass the required flow, maintain controllability, avoid noise or cavitation, and still leave room for operating variation?

That makes pressure drop a sizing and risk issue, not just a calculation step. If the assumed drop is wrong, the whole valve selection process can be distorted.

A valve that looks acceptable on paper may become oversized, unstable at low openings, excessively noisy, or unable to deliver target flow under upset conditions.

In procurement and technical review, this also affects lifecycle economics. A poor sizing decision can increase maintenance frequency, waste pumping energy, and reduce process consistency across the system.

Why Pressure Drop Across Control Valves Matters So Much

Pressure drop across control valves is the differential pressure available between the valve inlet and outlet while the system is operating. It is the energy the valve uses to regulate flow.

That pressure differential directly influences valve capacity, rangeability, trim velocity, flashing risk, cavitation tendency, and aerodynamic or hydrodynamic noise generation.

Too little pressure drop can make the valve ineffective as a control element. Too much can force the valve to absorb excessive energy, accelerating wear and creating instability.

In real plants, the valve does not operate in isolation. Its pressure drop is part of a larger hydraulic balance involving pumps, piping, fittings, exchangers, static head, and downstream equipment.

Technical evaluators therefore need to look beyond catalog Cv values. The correct question is whether the available pressure profile supports stable control across normal, minimum, and maximum operating cases.

The Most Common Sizing Mistake: Using a Single Design Point

One of the most frequent mistakes is sizing the valve only for a nominal design point. This seems efficient during specification, but it ignores how industrial systems actually behave.

Most processes operate across a range of loads, temperatures, viscosities, and upstream or downstream pressures. A valve selected from one point may perform poorly everywhere else.

At maximum load, the valve may fail to pass enough flow. At low load, it may run nearly closed, causing hunting, poor control resolution, and trim damage.

This is especially problematic when evaluators rely on maximum flow plus ideal pressure assumptions without validating minimum controllable flow and expected opening position.

A better approach is to review at least three cases: minimum, normal, and maximum flow. Critical services may require startup, turndown, upset, and future expansion scenarios as well.

If a valve is only acceptable in one condition, it is not truly well sized. It should be evaluated for controllability across the full operating envelope.

Assuming the Valve Should Absorb All Available Pressure Drop

Another common error is assuming that all excess system pressure should be taken across the control valve. In many systems, this leads to an unnecessarily severe duty.

Higher pressure drop can reduce valve size, but it also raises fluid velocity and can intensify cavitation, flashing, vibration, and noise. Smaller is not always better.

Some evaluators also inherit the rule of thumb that the valve should consume a fixed percentage of total system pressure. That shortcut is not universally valid.

The correct pressure drop depends on the service, process dynamics, pump curve, line losses, control objective, fluid state, and acceptable energy dissipation in the valve.

In liquid service, excessive drop may push local pressure below vapor pressure, initiating cavitation or flashing. In gas service, it can drive compressibility effects and high acoustic energy.

The best sizing decisions come from system-based analysis, not isolated valve optimization. The valve should take enough pressure drop to control the process, but not more than necessary.

Ignoring Installed Performance and Looking Only at Rated Cv

Catalog data often shows idealized valve capacity under standard test conditions. But installed performance can be very different once the valve is placed into a real piping system.

Pressure drop across control valves changes with flow and with the behavior of the rest of the circuit. That means the installed flow characteristic may deviate from the inherent characteristic.

A valve with an equal-percentage trim may not behave as expected if upstream and downstream pressure relationships shift significantly during operation. The same is true for linear trim.

If evaluators choose a valve solely because the published Cv meets the calculated requirement, they may miss poor controllability at common operating openings.

In many services, the preferred operating position is not near full open or nearly shut. A practical target is often mid-stroke performance during normal operation, with room for variation.

This gives the control loop better authority and leaves margin for process changes. Installed behavior matters more than nominal capacity alone.

Underestimating Cavitation, Flashing, and Choked Flow Risks

Many sizing errors occur because pressure drop is treated as a pure flow variable, without enough attention to fluid phase behavior and limiting flow conditions.

In liquid applications, cavitation occurs when local pressure falls below vapor pressure and bubbles later collapse. This can cause severe pitting, vibration, and noise.

Flashing is different. Once the fluid vaporizes and does not recover downstream, the resulting two-phase flow can rapidly erode trim and downstream components.

In gas and steam service, choked flow can limit capacity even if further downstream pressure reduction appears available. If ignored, predicted flow can be overstated.

These effects are not fringe cases. They are common in high differential pressure services, hot liquids, pressure letdown duties, and compact process skids.

Technical evaluators should confirm whether the supplier assessed recovery factors, vapor pressure, critical pressure ratios, and noise implications using recognized sizing standards.

Any quotation that gives a valve size without discussing these risks in severe service should be reviewed carefully. A low purchase price can mask a much higher operational cost.

Overlooking the Interaction Between Valve Size and Control Stability

Oversizing is one of the most persistent problems in control valve selection. It often happens because teams want to preserve margin or avoid the risk of undersizing.

But an oversized valve usually operates at very small openings during normal conditions. That reduces controllability, amplifies gain changes, and makes precise modulation difficult.

The result can be oscillation, seat wear, poor product consistency, and unnecessary operator intervention. In automated systems, this instability can affect the wider process loop.

Technical evaluators should therefore ask not only whether the valve can pass maximum flow, but where it will operate most of the time.

A valve that reaches normal duty at a moderate opening is often better than a larger valve that barely opens. Control quality matters as much as peak capacity.

This is particularly important in intelligent manufacturing environments where process repeatability, sensor-driven optimization, and digital loop performance are key value drivers.

Missing Critical Data During RFQ and Technical Review

Many sizing mistakes begin long before calculation. They start with incomplete process data in the request for quotation or technical comparison stage.

If fluid composition, temperature range, viscosity, vapor pressure, upstream pressure variation, or downstream backpressure are missing, the sizing result may be unreliable.

The same is true when evaluators fail to specify required flow cases, shutoff class, allowable noise, line size constraints, or expected control strategy.

Suppliers may fill in gaps using assumptions, but those assumptions can differ widely. Two quotations may look inconsistent simply because the input basis was not aligned.

A disciplined data sheet improves comparability and reduces hidden risk. It also helps sourcing teams distinguish between a genuinely engineered proposal and a superficial offer.

At minimum, evaluators should request normal, minimum, and maximum operating data, fluid properties, pressure conditions, piping size, and any known transient scenarios.

How to Evaluate Whether the Proposed Sizing Is Credible

Technical reviewers do not always need to redo the full valve sizing calculation. But they do need a structured way to judge whether the supplier’s recommendation is credible.

First, check the operating opening at minimum, normal, and maximum flow. If normal duty is extremely close to shutoff or maximum travel, that deserves scrutiny.

Second, review the assumed pressure drop across control valves for each case. Ask whether those values come from a system model or from a fixed simplifying assumption.

Third, confirm whether the proposal addresses cavitation, flashing, choked flow, and noise where relevant. Severe-service conditions should trigger explicit commentary, not silence.

Fourth, compare valve size with line size and trim strategy. A line-sized body with reduced trim may be appropriate in some cases, but it should be technically justified.

Fifth, examine the expected rangeability and control characteristic in installed conditions. A valve that can flow enough is not automatically one that can control well.

Finally, ask for standards basis, such as IEC or ISA methodologies, plus any software output or assumptions used. Transparency improves confidence in the recommendation.

Practical Steps to Avoid Costly Sizing Mistakes

The most effective way to avoid mistakes is to treat valve sizing as a cross-functional review between process engineering, controls, mechanical stakeholders, and sourcing.

Start with complete process data and multiple operating cases. Then verify the system pressure profile rather than assuming a generic pressure drop allocation.

Evaluate both capacity and controllability. Review normal operating position, not just maximum flow. Consider lifecycle risks such as trim wear, noise, and maintenance burden.

Where service is demanding, ask early whether anti-cavitation trim, multi-stage pressure reduction, low-noise designs, or special materials are necessary.

For critical assets, digital simulation and installed performance checks are worthwhile. They reduce the chance of selecting a valve that works in theory but fails in practice.

From a procurement perspective, the lowest initial quote should never be accepted without confirming the technical basis. Poor valve sizing creates hidden costs that surface later.

In advanced industrial environments, better sizing decisions support process resilience, more predictable energy use, and stronger long-term asset performance.

Conclusion: Pressure Drop Is a Decision Variable, Not Just a Number

Pressure drop across control valves should be viewed as a core decision variable linking flow control, reliability, efficiency, and asset life.

The biggest mistakes usually come from oversimplification: using one design point, assuming fixed pressure allocation, ignoring installed performance, or overlooking severe-service risks.

For technical evaluators, the right question is not simply whether a valve fits the line or matches a Cv target. It is whether the valve will control reliably across real conditions.

When pressure drop is evaluated in the context of the full system, sizing becomes more accurate, supplier comparisons become clearer, and operational surprises become less likely.

That is the difference between buying a valve and selecting a control solution that supports long-term industrial performance.
