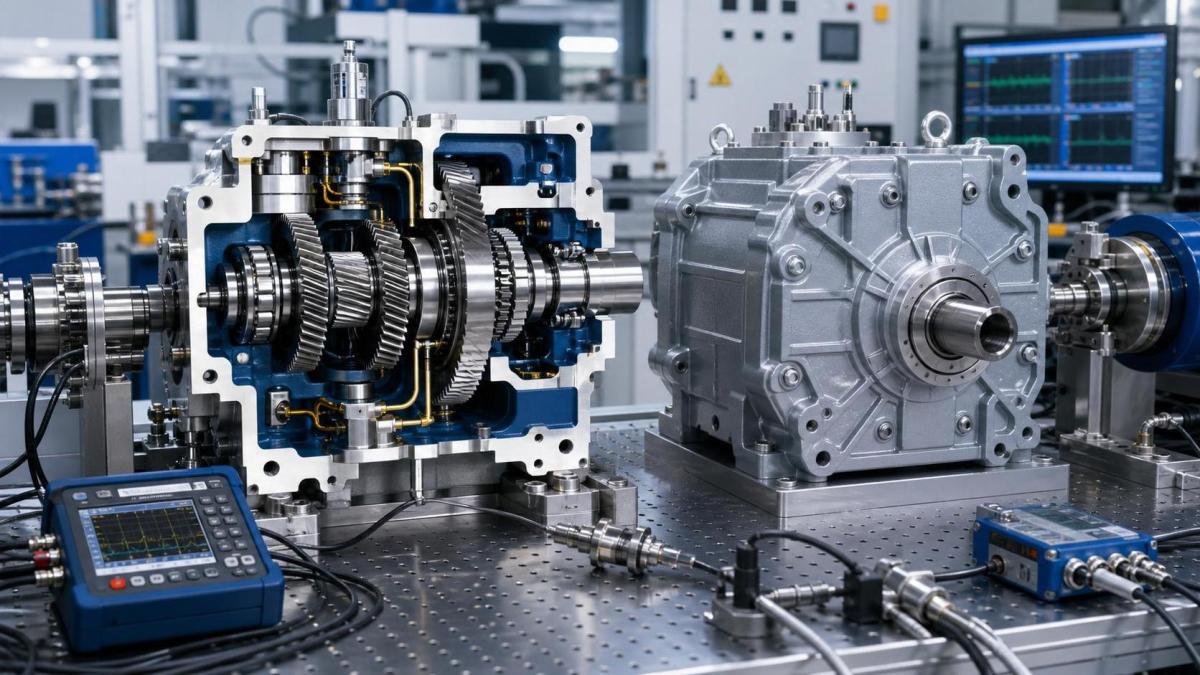

Gearbox Fatigue Life Calculation: Inputs That Change Results

Gearbox fatigue life calculation looks straightforward only at a distance. In real evaluation work, rated torque and catalog life are only starting points. Small shifts in duty cycle, material consistency, lubrication quality, shaft alignment, and actual field loading can move predicted life sharply upward or downward.

That matters across heavy industry, automated production, energy systems, mobile equipment, and process lines where gearbox reliability affects uptime, maintenance planning, and capital decisions. In data-driven industrial environments, life calculation is no longer just a design exercise. It is a benchmarking issue tied to risk, traceability, and operational confidence.

Why fatigue life results vary more than many assume

A gearbox fails from repeated stress, not from one average number alone. Gear tooth bending, surface contact fatigue, bearing degradation, and shaft stress each respond to different operating conditions.

Because of that, gearbox fatigue life calculation depends on input quality as much as on calculation method. Two suppliers may use similar standards yet reach different results because they model the application differently.

The biggest mistake is treating service life as a fixed property of the gearbox itself. In practice, predicted life reflects the interaction between design, manufacturing quality, environment, and operating behavior.

This is why technical benchmarking platforms such as G-AIE are increasingly relevant. They help connect physical asset performance with material data, intelligent automation signals, and cross-supplier comparison logic.

The inputs that most often change gearbox fatigue life calculation

Some variables have an obvious effect. Others seem minor on paper but reshape the stress history enough to change the final estimate.

Load spectrum, not nominal load

A nominal torque value rarely represents real use. Start-stop cycles, peak loads, reversing duty, overload spikes, and shock events can dominate fatigue damage accumulation.

A gearbox operating at moderate average torque but frequent peaks may have shorter life than one running continuously at a higher but stable load. That distinction is central to gearbox fatigue life calculation.

Duty cycle and time at speed

Running hours matter, but operating pattern matters more. High-speed operation, frequent acceleration, dwell periods, and thermal cycling affect both mechanical fatigue and lubricant behavior.

If the duty profile is simplified too aggressively, the result may look conservative or optimistic for the wrong reasons.

Material grade and heat treatment stability

Gear tooth life depends heavily on core toughness, case depth, hardness distribution, residual stress, and surface finish. Two components that meet the same drawing can still behave differently in fatigue.

This is one reason material science remains a core industrial concern. In the wider G-AIE context, material benchmarking is not separate from automation performance. It directly affects asset durability and predictability.

Lubrication regime and contamination

Film thickness, viscosity selection, oil cleanliness, additive package, and operating temperature all influence surface fatigue. Poor lubrication can invalidate an otherwise sound gearbox fatigue life calculation.

Contamination is especially damaging. Particles accelerate pitting, scuffing, and bearing wear, then feed back into the system as more debris.

Alignment, housing stiffness, and assembly accuracy

Misalignment shifts load distribution across tooth faces and bearing rows. Housing deflection and installation error can create localized stress far above the calculated ideal condition.

This is where field performance often diverges from catalog expectation. The gearbox may be adequate in theory but overloaded at one edge in service.

Where evaluation errors usually begin

Life prediction problems often begin before any formula is applied. The issue is not always calculation complexity. It is usually weak assumptions.

A reliable gearbox fatigue life calculation should show where assumptions come from, how they were validated, and which uncertainties remain open.

Why this matters across modern industrial systems

Gearboxes now sit inside more connected, higher-output, and less forgiving systems. Production assets are pushed for efficiency, while maintenance intervals are optimized more aggressively.

That means a weak life estimate affects more than replacement timing. It can distort spare strategy, digital maintenance models, warranty exposure, and line availability assumptions.

In intelligent automation settings, sensor data also changes expectations. Once torque, vibration, temperature, and oil condition can be monitored, static life claims face higher scrutiny.

This is where a multidisciplinary view becomes useful. G-AIE’s positioning around material science, benchmarking, and industrial intelligence reflects a real market shift: physical durability must be interpreted alongside data quality.

Typical scenarios that need closer review

Not every application requires the same depth of analysis. Some conditions justify a basic calculation. Others require a more detailed fatigue model and stronger evidence.

• Variable-speed drives with frequent acceleration and deceleration.
• Conveying systems exposed to jam loads or intermittent overloads.
• Robotic or automated cells with compact gear units and thermal constraints.
• Wind, mining, marine, and heavy process equipment with difficult access.
• Retrofit projects where the original duty cycle has changed over time.
• High-availability lines where unplanned downtime creates disproportionate losses.

In these cases, gearbox fatigue life calculation should be treated as a decision tool, not just a compliance checkbox.

What to ask when comparing life claims

A useful comparison starts with the assumptions behind the number. Without that context, life values from different sources are difficult to compare fairly.

Questions that improve clarity

• Which failure mode controls the stated life: tooth root, pitting, bearing, or shaft?
• Was the duty cycle measured, estimated, or simplified from a nameplate condition?
• What material and heat treatment data support the fatigue assumptions?
• How were lubrication temperature and contamination risk treated?
• Were mounting conditions, misalignment, and housing stiffness included?
• What reliability level is implied by the stated service life?

These questions do not slow evaluation. They prevent false alignment between similar-looking numbers.

A practical way to use gearbox fatigue life calculation

The strongest approach combines calculation, field evidence, and operating data. A model should be detailed enough to reflect reality, but structured enough to compare options consistently.

Usually, that means separating three layers of review.

• Baseline calculation using recognized standards and stated duty assumptions.
• Sensitivity review showing which inputs change life the most.
• Validation loop using inspection data, monitoring signals, or historical failure records.

This layered method is especially useful when comparing suppliers, upgrading equipment, or testing whether an existing gearbox can support new operating targets.

A credible gearbox fatigue life calculation should therefore produce more than a single life number. It should reveal confidence level, sensitivity, and operational limits.

What to review next

The next step is usually not another formula. It is a cleaner input set. Review the actual load spectrum, confirm lubrication conditions, check alignment assumptions, and ask how material variability is handled.

If different sources provide different life values, compare the assumptions before comparing the numbers. That simple discipline often reveals where real risk sits.

In industrial ecosystems shaped by advanced materials and intelligent automation, gearbox fatigue life calculation becomes more valuable when tied to measurable operating evidence. That is the point where a life estimate starts supporting stronger technical and sourcing decisions.
